DonoBrace

Australia and New Zealand’s only dynamically tested steel rod bracing system.

Order Now Tech Specs
Front cover of Tech Spec guide

Technical Information

This booklet includes information on testing, installation, design/ dimensions and guidance for structural engineers.

Download NZ Version Download AU Version

Strong, Less Weight, Fast To Install. DonoBrace is a steel rod bracing system designed to resist lateral wind and earthquake loads.

Testing by Holmes Solutions LP demonstrates that DonoBrace can be used for designs compliant with New Zealand Steel Structures Standard NZS3404, satisfying structural requirements of the New Zealand and Australian Building Codes.

The result of five decades of engineering experience and continuous research, DonoBrace is the only steel rod bracing product in Australia and New Zealand which is dynamically tested in a simulated earthquake environment. Specifically designed to resist lateral wind and earthquake loads, DonoBrace gives builders unprecedented flexibility and ease. It reduces installation time by allowing fewer bespoke coupling components and contributes to Donovan Group’s waste-saving commitment by using brackets made from off cuts of larger steel products. All while delivering the engineer what really matters: peace of mind.

Order Now

 We at Grayson Engineering (2015) Limited, are a regular user of the DonoBrace system and we are thoroughly pleased with the product. It is readily available, easy and efficient to install, and the local support team is excellent.

David Moore - Managing Director

Why DonoBrace?

Superior Testing

Fast Installation

More Capacity & Less Weight

Design Flexibility

NZ Designed & Manufactured

DonoBrace has undergone extensive dynamic, cold temperature performance, and hydrogen embrittlement testing plus an ongoing QA testing program for compliance. These tests demonstrate DonoBrace’s ability to reliably withstand extreme wind and seismic loads in a range of challenging environments.

donobrace product shot 1

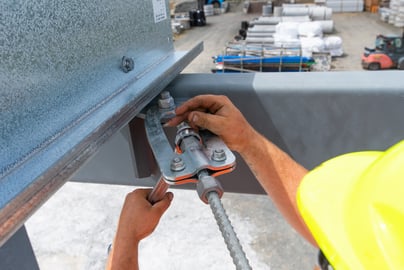

The DonoBrace rod bracing system is designed for simple, efficient installation. The steel bracing product ends allow for less sophisticated coupling components, dramatically decreasing installation time and complexity.

donobrace installation shot 1

Our DonoBrace G830 threaded galvanised bar has been tested to AS/NZS 1170.0 with G350 plate connections. This higher capacity result means you can choose a smaller and lighter weight diameter bar to deliver the same seismic bracing capability.

DonoBrace Other brands
Size kN* Size kN*
15mm 132kN 16mm 91kN
20mm 235kN 20mm 141kN
25mm 367kN 25mm 221kN
32mm 362kN

*Design yield strength = øN(ø=0.9)

The higher load capacity of the DonoBrace rod bracing system gives engineers and designers the option to choose a different diameter bar system. This flexibility means DonoBrace can perfectly suit the buildability and methodology considerations of the construction project.

donobrace product shot 3

Designed to New Zealand and Australian standards, for Australasian conditions. DonoBrace steel rod bracing undergoes an independent quality assurance check prior to every shipment, ensuring peace of mind and consistently compliant products.

donobrace product shot 2

Tried & Tested

At DonoBrace we pride ourselves on our superior performance and comprehensive testing. To ensure the correct calculated capacities are achieved, it is imperative that DonoBrace is used as a completed supplied system. No material substitutions are to be made without specific written authority.

Installation Video

Dynamic Testing Video

Free Downloads of Design and Detailing Software

DonoBrace key project:

Ha Crescent, Auckland

Length:
187m
Width:
59.4m
Knee Height:
13m
Floor Area:
10,850m²
Building Use:
Commercial and Industrial
Portal System:
DonoBeam Tapered Box Beam
